⚙ THÔNG SỐ CƠ BẢN:
- Intel: LGA2066/2011/1851/1700/1200/1151/1150/1155/1156
- AMD: AM5/AM4
- Size: 120 x 120 x 25 mm (length x width x thickness)
- Noise Level: 35.2 dB(A) Max
- Power:
- Voltage: 12 VDC (rated), 10.8 – 13.2 VDC (operating), 7 VDC (start)
- Current: 0.2 A (rated)
- Input Power: 2.4 W

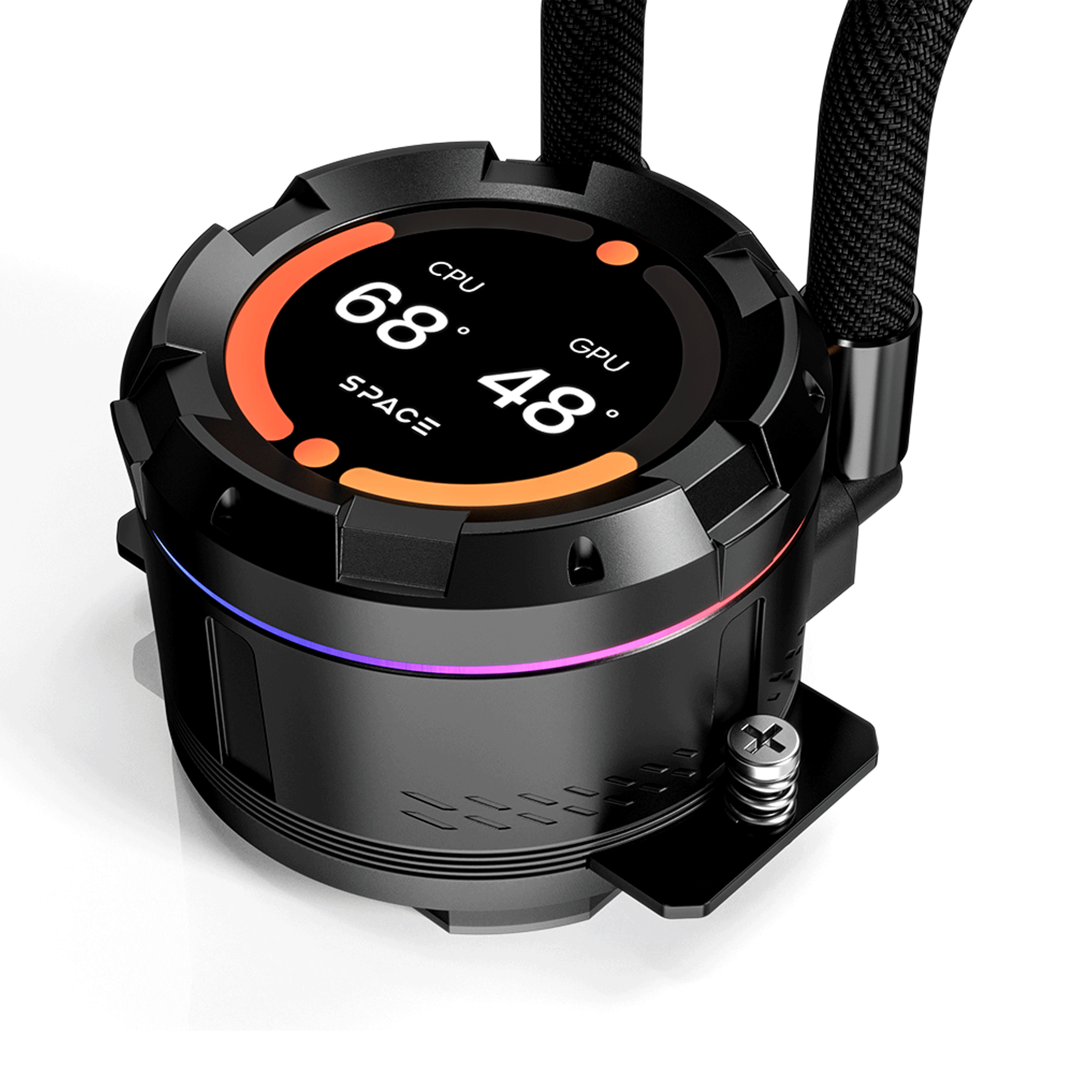

Display
- Screen Size: 2.1 inch
- Resolution: 480x480 pixels
- Colors: 24-bit (16.7 million colors)
- Backlight Brightness: 600cd/m²
Compatibility
- Motherboards:
- Intel: LGA2066/2011/1851/1700/1200/1151/1150/1155/1156
- AMD: AM5/AM4
Cooling System
- Maximum Supported TDP: 350W

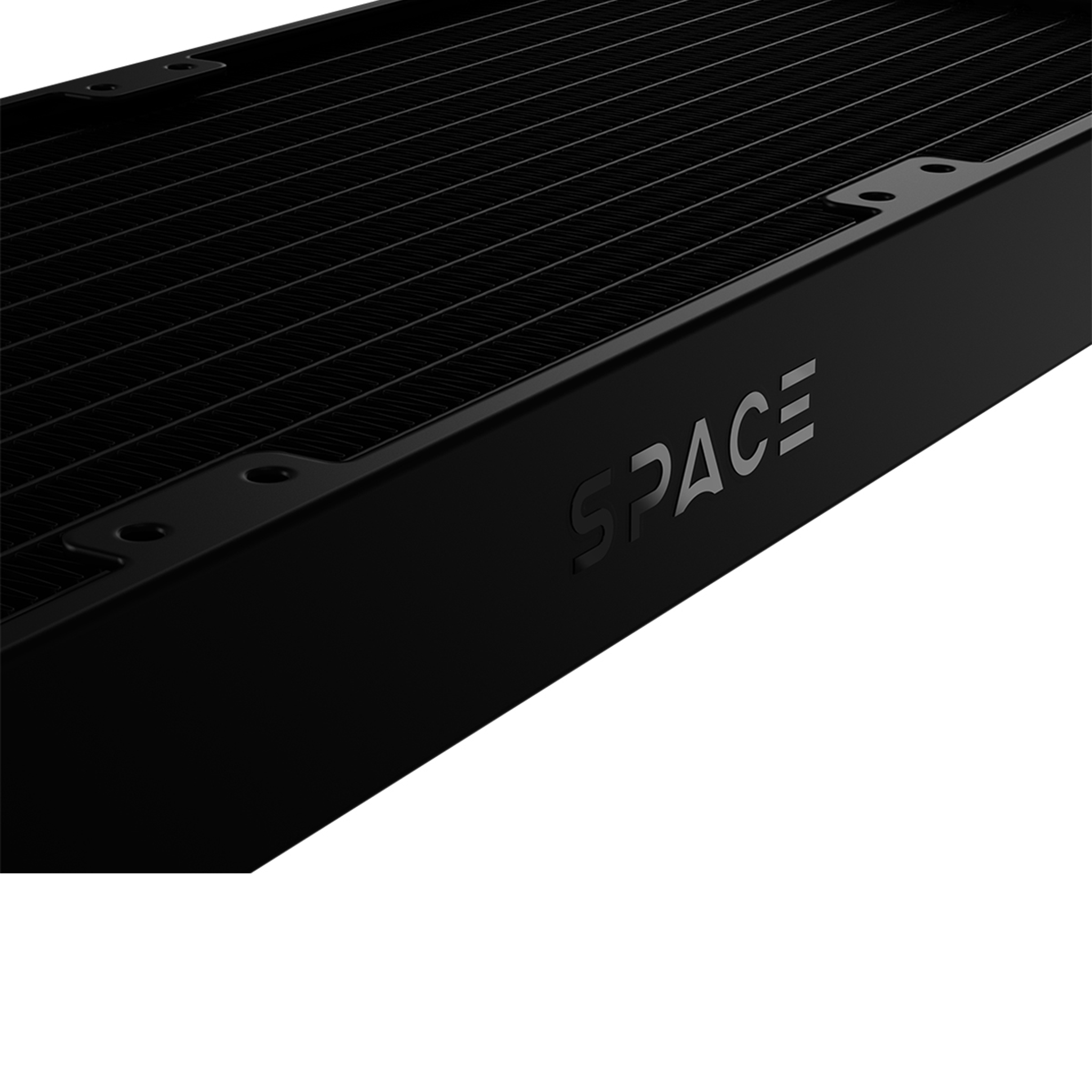

Radiator
- Dimensions: 397 x 120 x 27 mm (length x width x thickness)
- Material: Aluminum
Tubing
- Material: Sleeved
- Length: 465 mm

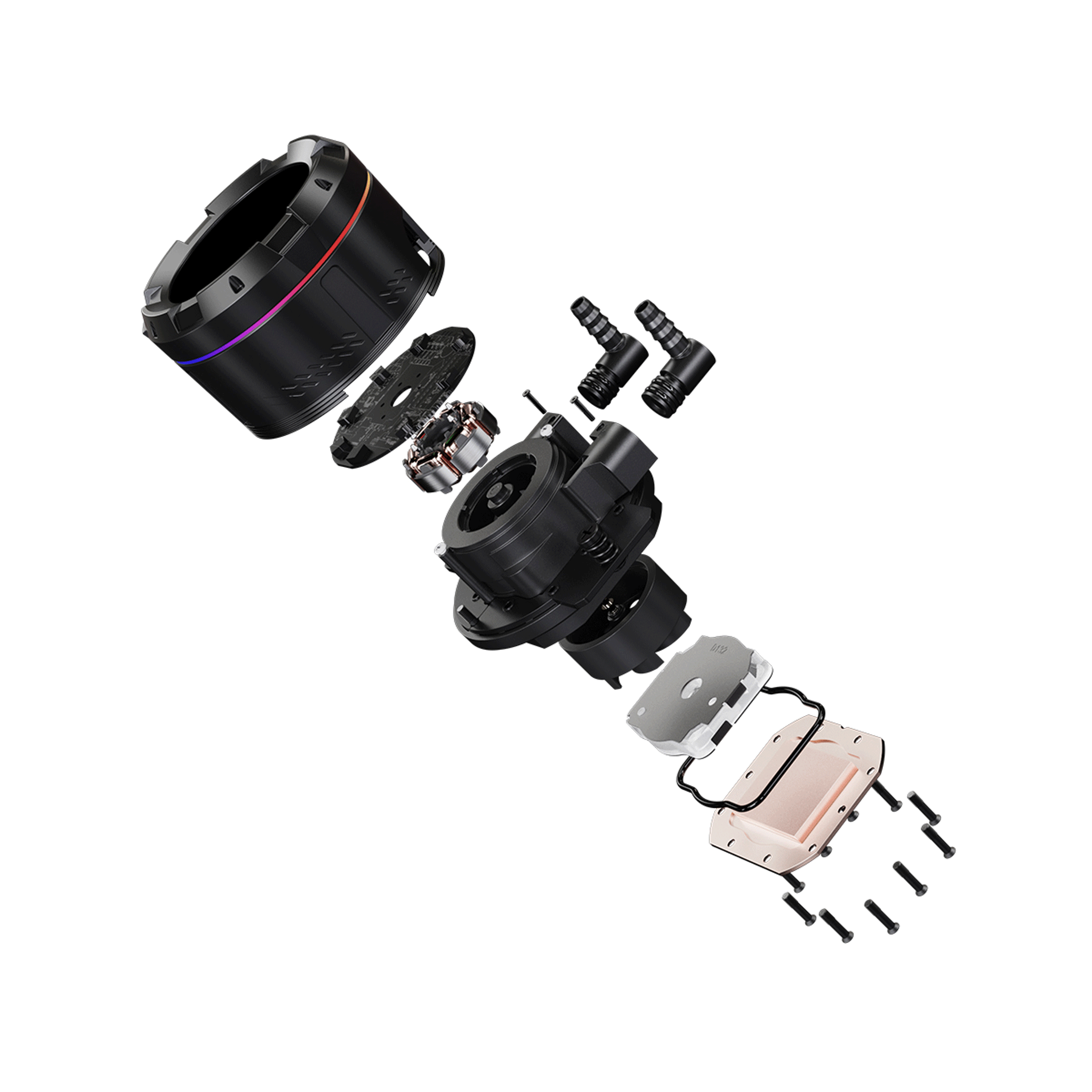

Water Block
- Dimensions: 76 x 76 x 58 mm (length x width x height)
- Cold Plate Material: Copper
Pump
- Current: 0.36A Max
- Speed: 2500 RPM ± 10%
- Bearing: Ceramic
- Life Expectancy: 50,000 hours
- Noise Level: 25 dB(A)

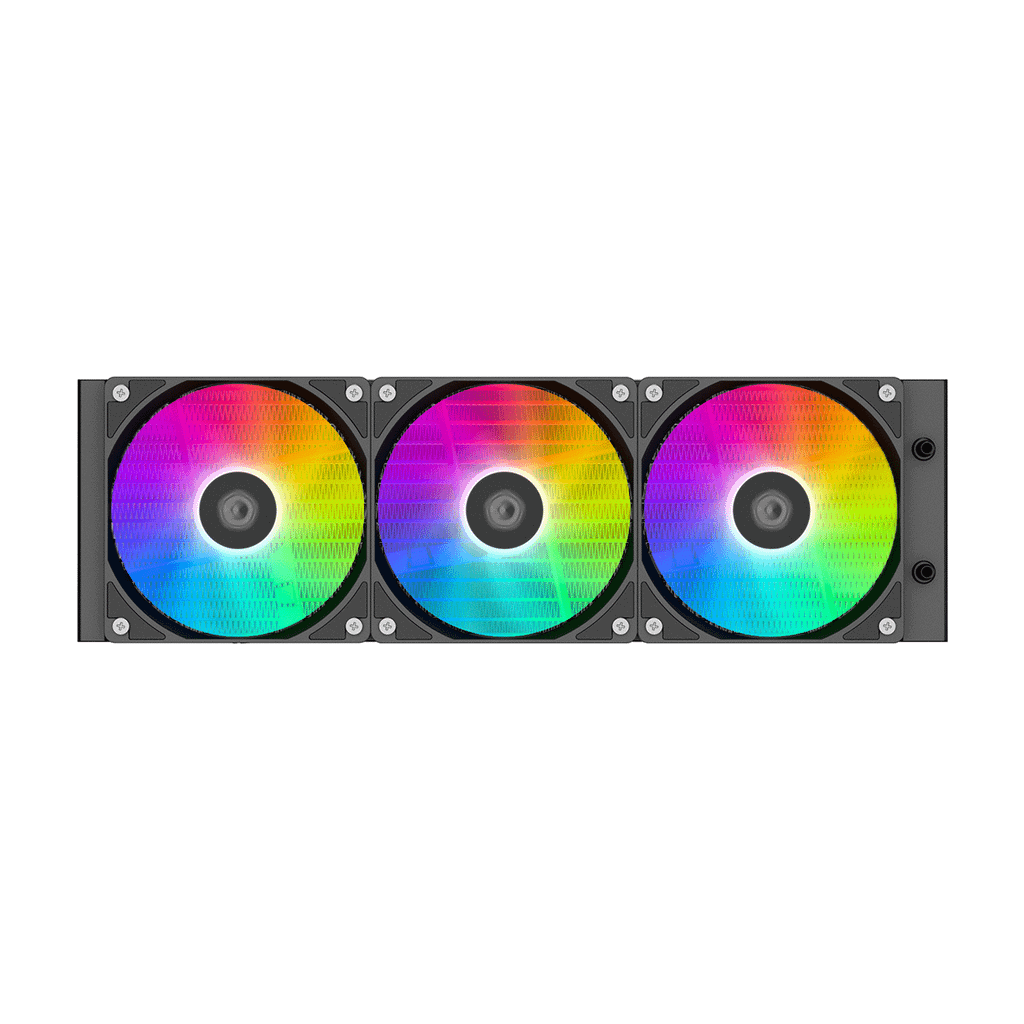

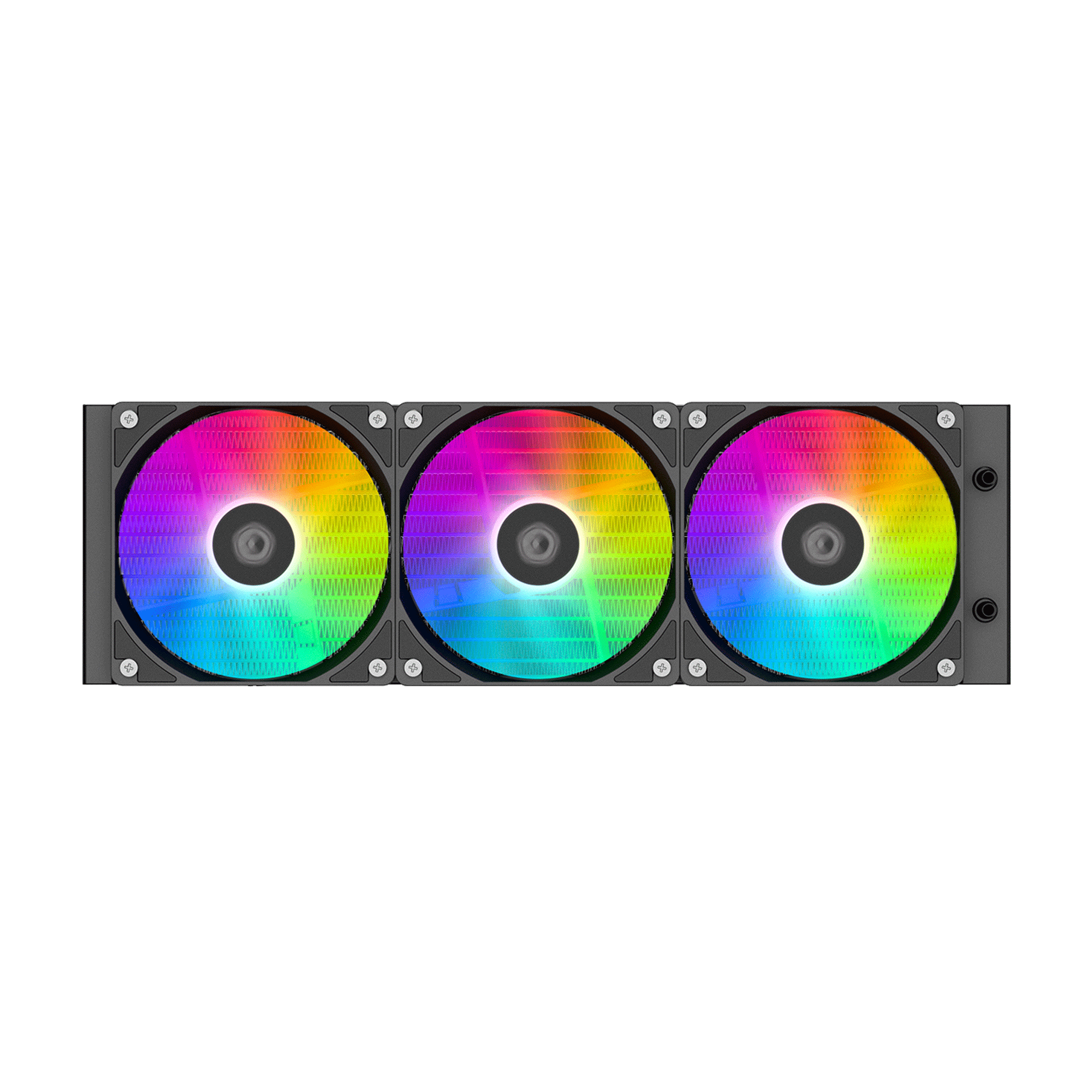

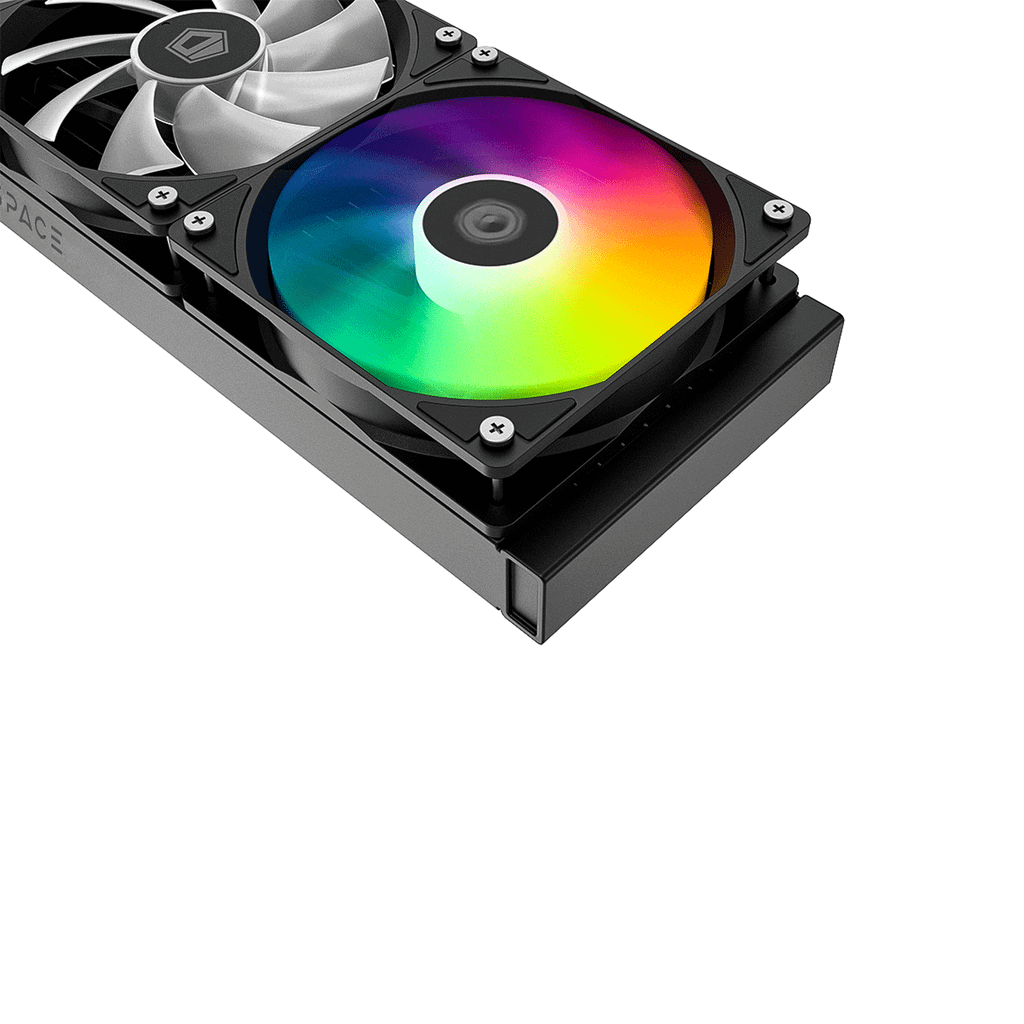

Fans (3 included)
- Size: 120 x 120 x 25 mm (length x width x thickness)
- Speed Range: 500 – 1800 RPM ± 10%
- Maximum Airflow: 76.16 CFM
- Maximum Static Pressure: 2.16 mmH2O
- Noise Level: 35.2 dB(A) Max
- Power:
- Voltage: 12 VDC (rated), 10.8 – 13.2 VDC (operating), 7 VDC (start)
- Current: 0.2 A (rated)
- Input Power: 2.4 W
- Bearing Type: Hydraulic
Connectors
- 4-Pin PWM for fan control
- 5V 3-Pin ARGB for addressable RGB lighting
